Optimizing Shaking Table Performance: Key Parameters

Shaking tables are a cornerstone of gravity separation in mineral processing, prized for their ability to concentrate valuable minerals based on density differences. Despite their simplicity, achieving optimal performance requires careful control and adjustment of various operational parameters. Improper settings can lead to poor separation efficiency, lower concentrate grades, and reduced recovery rates. This article offers a comprehensive overview of the critical parameters influencing shaking table performance and practical strategies for their optimization. Understanding these factors enables operators to maximize recovery, improve concentrate quality, and enhance overall plant productivity.

Shaking Table Operation

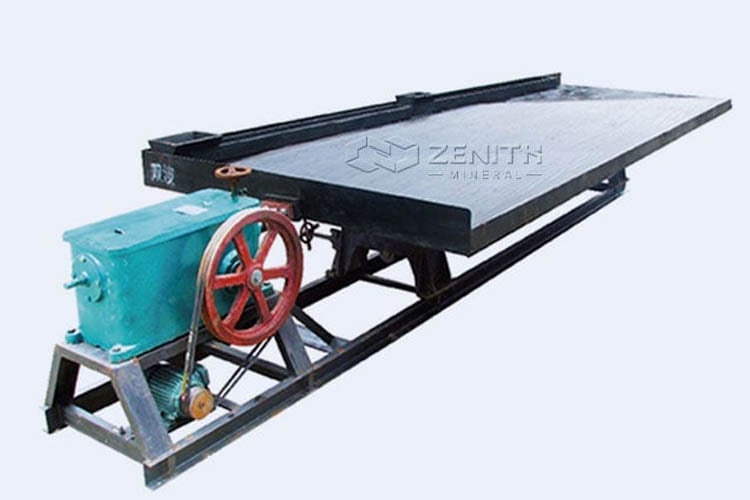

A shaking table separates particles by exploiting differences in specific gravity, particle size, and shape. The table deck, inclined at a specific angle, is subjected to a reciprocating shaking motion while a controlled flow of water washes particles across the riffled surface. Heavy minerals tend to settle and move differently compared to lighter gangue particles, allowing for effective separation.

The key to optimizing performance lies in balancing the complex interactions between feed characteristics, mechanical motion, water flow, and table design. Each parameter must be carefully adjusted to suit the ore type, particle size distribution, and desired concentrate grade.

Key Parameters Affecting Shaking Table Performance

1. Deck Slope (Inclination Angle)

• Definition: The angle at which the table deck is inclined relative to the horizontal plane. Typical Range: Generally between 3° and 7°.
• Effect: The deck slope controls the gravitational force component driving particle movement along the table.
• Optimization:
  • A steeper slope increases particle flow velocity, favoring the separation of coarser and heavier particles.
  • A gentler slope slows particle movement, improving recovery of finer particles by allowing more time for stratification.
  • Adjustment should consider particle size distribution and mineral density; fine or low-density ores benefit from a lower slope.

2. Stroke Length and Frequency

• Definition: The stroke length is the amplitude of the table’s shaking motion, while frequency refers to the number of strokes per minute.
• Typical Values: Stroke length varies from 5 to 15 mm; frequency ranges from 200 to 300 strokes per minute.
• Effect: These parameters influence particle stratification, bed fluidization, and transport.
• Optimization:
  • Increasing stroke length and frequency enhances stratification and separation efficiency but may cause turbulence and loss of fine particles if excessive.
  • Fine particles require shorter stroke lengths and higher frequencies for better separation.
  • Coarse particles benefit from longer strokes and lower frequencies to avoid particle bounce and mixing.

3. Water Flow Rate

• Definition: The volume of water flowing over the table surface per unit time.
• Effect: Water flow aids in washing away lighter particles and maintaining particle stratification.
• Optimization:
  • Insufficient water flow reduces washing efficiency, causing gangue contamination in concentrates.
  • Excessive water flow can disturb stratification, washing away valuable heavy minerals.
  • Water distribution should be uniform; uneven flow causes poor separation and concentrate dilution.
  • Operators often adjust water flow in conjunction with feed rate to maintain optimal slurry consistency.

4. Feed Rate and Slurry Density

• Feed Rate:
  • The mass or volume of slurry introduced onto the table per unit time.
  • Overfeeding causes particle crowding, reducing stratification and separation efficiency.
  • Underfeeding leads to underutilization of table capacity and lower throughput.
• Slurry Density:
  • The concentration of solids in the feed slurry, typically expressed as a percentage by weight.
  • High slurry density increases viscosity, impeding particle movement and stratification.
  • Low slurry density wastes water and reduces throughput.
• Optimization:
  • Maintain a balanced feed rate that matches the table’s capacity.
  • Adjust slurry density to achieve a fluidized bed where particles can stratify effectively.
  • Typical slurry densities range from 20% to 40% solids by weight, depending on ore characteristics.

5. Riffle Design and Deck Surface

• Riffles:
  • Raised bars running longitudinally along the deck surface, varying in height, spacing, and shape.
  • They create zones of differential flow velocity and trap heavier particles.
• Deck Surface:
  • Material and texture affect friction and particle retention.
  • Common materials include wood, rubber, and composite plastics.
• Optimization:
  • Riffle height and spacing should be selected based on particle size; finer particles require lower and closer riffles.
  • Deck surfaces should balance wear resistance with adequate friction to prevent particle slippage.
  • Some modern tables use modular riffle systems allowing quick changes to suit different ore types.

Practical Strategies for Performance Optimization

1. Systematic Parameter Adjustment

Operators should adjust parameters systematically rather than simultaneously to identify the individual effect of each variable. A typical approach involves:

• Starting with manufacturer-recommended settings.
• Adjusting one parameter (e.g., deck slope) while keeping others constant.
• Observing changes in concentrate grade, recovery, and tailings quality.
• Iterating adjustments until optimal performance is achieved.

2. Feed Preparation

• Proper crushing and classification ensure the feed particle size distribution matches the table’s operational range.
• Removing ultra-fines and coarse oversize particles improves separation.
• Maintaining consistent feed characteristics reduces fluctuations in performance.

3. Water Management

• Use clean, sediment-free water to prevent riffle clogging.
• Employ flow control valves and distribution systems to ensure uniform water coverage.
• Regularly inspect and maintain water supply components.

4. Regular Maintenance and Inspection

• Check for wear on riffles and deck surfaces; replace or refurbish as needed.
• Inspect drive mechanisms for proper stroke and frequency.
• Clean the deck regularly to prevent buildup of fines and slime.

5. Automation and Monitoring

• Modern installations incorporate sensors to monitor stroke frequency, water flow, feed rate, and concentrate grade.
• Automated control systems can adjust parameters in real time to maintain optimal conditions.
• Data logging enables performance tracking and troubleshooting.

Case Study: Optimizing a Shaking Table for Gold Concentration

A gold processing plant experienced inconsistent concentrate grades and low recovery rates using shaking tables. The initial setup used a deck slope of 5°, stroke length of 12 mm, frequency of 250 strokes/min, and water flow of 8 L/min.

Optimization Process:

• Deck Slope: Reduced to 3.5° to improve fine gold recovery.
• Stroke Parameters: Stroke length decreased to 8 mm, frequency increased to 280 strokes/min to enhance stratification.
• Water Flow: Adjusted to 6 L/min to prevent washout of fine gold.
• Feed Rate: Reduced by 15% to avoid overloading.

Results:

• Concentrate grade increased by 20%.
• Gold recovery improved by 12%.
• Tailings showed reduced gold content, indicating better separation.

Future Trends in Shaking Table Optimization

• Advanced Sensor Integration: Real-time monitoring of particle flow and separation efficiency.
• Machine Learning Algorithms: Predictive adjustments based on historical data to optimize parameters automatically.
• Improved Materials: Development of wear-resistant, low-friction deck surfaces to maintain consistent performance.
• Modular Designs: Flexible tables that allow quick changes in riffle patterns and deck inclination.

Optimizing shaking table performance is a multifaceted task requiring a deep understanding of the interplay between mechanical motion, water flow, feed characteristics, and table design. By carefully adjusting key parameters such as deck slope, stroke length and frequency, water flow, feed rate, and riffle configuration, operators can significantly improve separation efficiency and concentrate quality. Continuous monitoring, systematic adjustments, and regular maintenance are essential for sustained optimal performance. Emerging technologies promise to further enhance shaking table operation through automation and advanced materials, ensuring their continued relevance in modern mineral processing.
